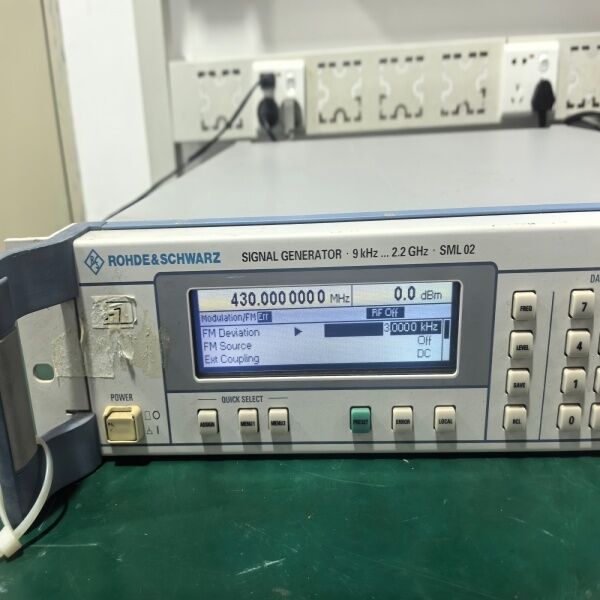

Rohde and Schwarz SML02 9kHz-2.2GHz Signal Generator

The Rohde SML02 is a 9 kHz to 2.2 GHz Signal Generator. The SML offers all features required of a state-of-the-art general-purpose signal generator: wide frequency range, large variety of modulation functions and high reliability -- at an extremely attractive price. The fields of application of SML are virtually unlimited in development, servicing or production where it is used as a flexible signal source in automatic test systems. SML benefits both from our long-standing experience in the field of signal generators and the latest technology. Its uses are as versatile as its functionalities.

• 9kHz to 1.1GHz
• SSB phase noise
• Optional pulse modulator with integrated pulse generator

• Form Factor Benchtop
• Minimum Frequency 9 kHz
• Maximum Frequency 2.2 GHz
• Frequency Resolution 0.1 Hz
• External Frequency Reference 10 MHz
• Minimum Output Power -140 dBm
• Maximum Output Power 13 dBm
• Power Resolution 0.1 dB
• Output Level Switching Time 10 ms
• Maximum Single-Side-Band Noise -122 dBc/Hz
• Harmonics (noise) -30 dBc
• Modulation AM,FM,Phase
• Sweep Modes External,Log,Manual

• User Interface Not Applicable

• CE Compliance Compliant
• UL Compliance Compliant
• Safety Issue meets DIN EN 61010-1, IEC 1010-1,UL 3111-1, CSA 22.2 No. 1010-1

• Input Power 100 V to 120 V (AC), 50 Hz to 60 Hz,200 V to 240 V (AC), 50 Hz to 60 Hz,autoranging, max. 150 VA

List of Options
