Dettagli dei prodotti
|

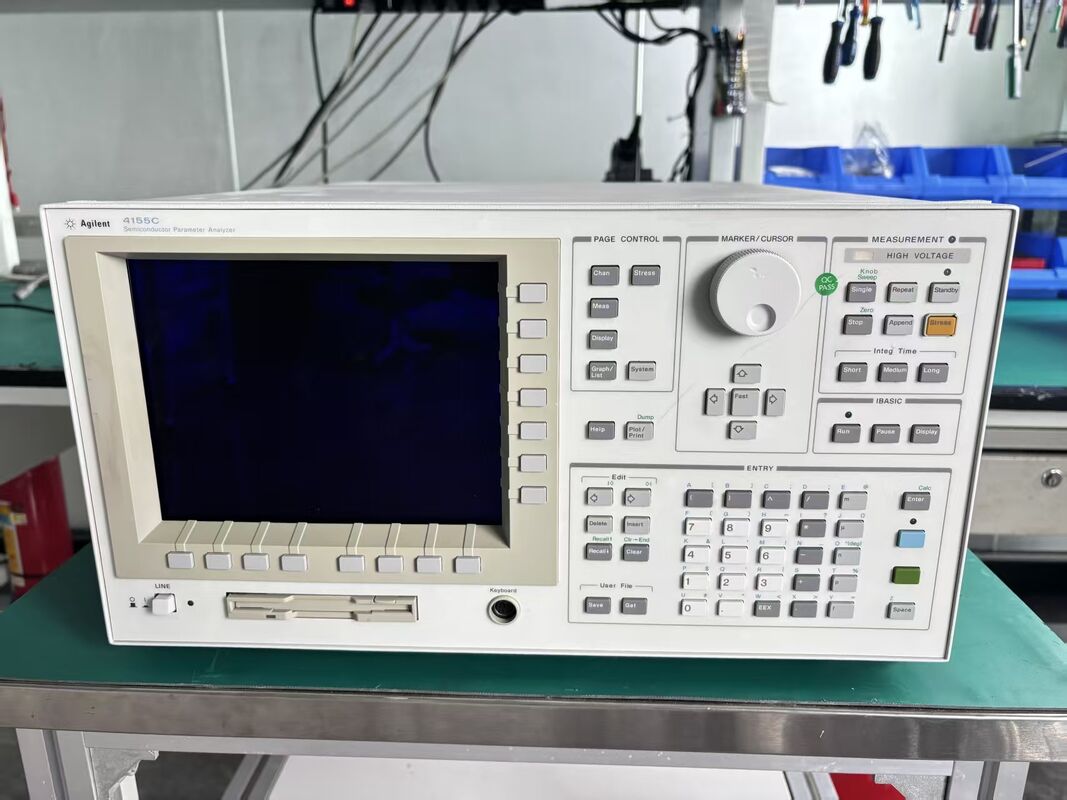

Keysight Keysight (Agilent) 4155C Semiconductor Parameter Analyzer
| Marchio: | Keysight (Agilent) |
| Numero di modello: | 4155C |
| MOQ: | 1 INSIEME |
| Prezzo: | Negoziabile |
| Condizioni di pagamento: | T/T |
Keysight 4155C semiconductor analyzer
,Agilent semiconductor parameter tester
,electronic test measurement equipment
Keysight Keysight (Agilent) 4155C Semiconductor Parameter Analyzer
Description of 4155C
You can also control your 4155B/C or 4156B/C parameter analyzer from a PC with Desktop EasyEXPERT software. The new version of Agilent Desktop EasyEXPERT software, which is included with the 4155C/4156C, is able to control the Agilent 4155B/C and 4156B/C parameter analyzers too. To learn more please see the following document.
General Features
- Cost-effective, accurate laboratory bench top parameter analyzer
- 4x Medium-power SMU, 2xVSU and 2xVMU
- Fill-in-the blanks front panel operation
- Includes Desktop EasyEXPERT software for PC-based GUI instrument control
Measurement Capabilities
- 10 femtoamp and 0.2 microvolt measurement resolution
- QSCV, Stress Mode, Knob-sweep, and Stand-by functions
- +/- 200 Volts and +/- 1 Amp High-Power SMU, Pulse Generator capabilities available by optional 41501B
Desktop EasyEXPERT Software
- Intuitive, task-oriented approach to parametric test
- Furnished with over 80 pre-defined, user-modifiable application tests
- Automatically save data to hard disk drive or any networked drive
- Offline data analysis and application test development via Desktop EasyEXPERT software
List of Options
| 020 | Delete Windows Controller for Parametric Analysis and Characterization |
| 0KN | Self paced training |
| 200 | 1.5m interlock, 4x coaxial, 4x triaxial cables |
| 230 | 3.0m interlock, 4x coaxial, 4x triaxial cables |
| 41501B | Pulse Generator and Expander Unit for the 4155C/4156C |
| A6J | ANSI Z540 compliant calibration with test data |
| ABA | U.S. Quick Users Guide (English localization) |
| ABJ | Japan Quick Users Guide (Japanese localization) |
| L25 | Int opt I/CV 3.0 Parallel Security Key |
| L26 | Int opt I/CV 3.0 USB Security Key |
| L27 | Not 4155C-DIV 3.0 |
| L28 | Not 4155C-DIV 3.0 (Japanese Localize) |
| L90 | Int opt 100V TEST |
| L91 | Int opt 120V TEST |
| L92 | Int opt 220V TEST |
| L93 | Int opt 240V TEST |
| PAR | Parallel Security Key |
| RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
| UK6 | Commercial calibration with test results data |
| USB | USB Security Key |
